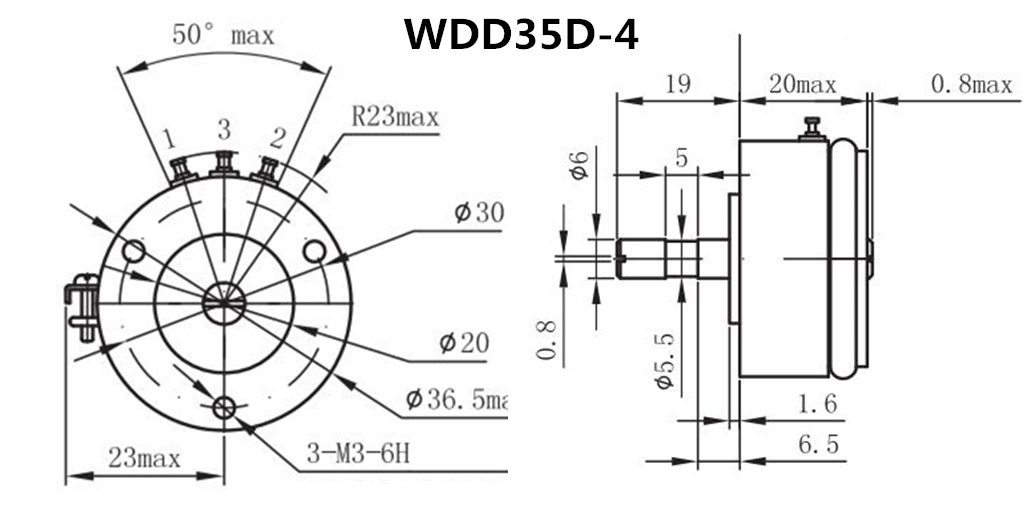

360 Degree Potentiometer WDD35D-4
Category： WDD35D4
Product Detail
| Precision Potentiometer WDD35D-4 | ||
| Electrical Characteristics | Standard Resistance Range | 1KΩ~10KΩ |
| Resistance Tolerance | ±1%（precision）±15%（Standard） | |
| Independent Linearity | ±0.1%（precision）±1%（Standard） | |
| Electrical Travel | 345° ±2%（Customized angle is available） | |
| Power Rating | 2W(70°C ) | |
| Temperature Coefficient | ±400p.p.m. /°C | |
| Insulation Resistance | ≥ 1000MΩ(500VD.C) | |
| Dielectric Strength | 1000V(AC.RMS)1min | |
| Output Smoothness | ≤±0.1% | |
| Mechanical Characteristics | Total Rotational Angle | 360° (endless) |
| Start Torque | ≤10*10^-4 N·M | |
| Environmental Characteristics | Temperature range | -55 ℃ ~ +125 ℃ |
| Vibration dynamic | 15G 2000 hz | |
| Mechanical life | 50,000,000 RPM | |
| Shock | 50G 11ms | |
Keyword：360 Degree Potentiometer WDD35D-4
Prev： Nothing！
Next： Nothing！
360 Degree Potentiometer WDD35D-4
Precision Potentiometer WDD35D-4 Electrical Characteristics Standard Resistance Range 1KΩ~10KΩ Resistance Tolerance ±1%(precision)±15%(Standard) Independent Linearity ±0.1%(precision)±1%(Standard) Electrical Travel 345° ±2%(Customized angle is available) Power Rating 2W(70°C ) Temperature Coefficient ±400p.p.m. /°C Insulation Resistance ≥ 1000MΩ(500VD.C) Dielectric Strength 1000V(AC.RMS)1min Output Smoothness ≤±0.1% Mechanical Characteristics Total Rot... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
