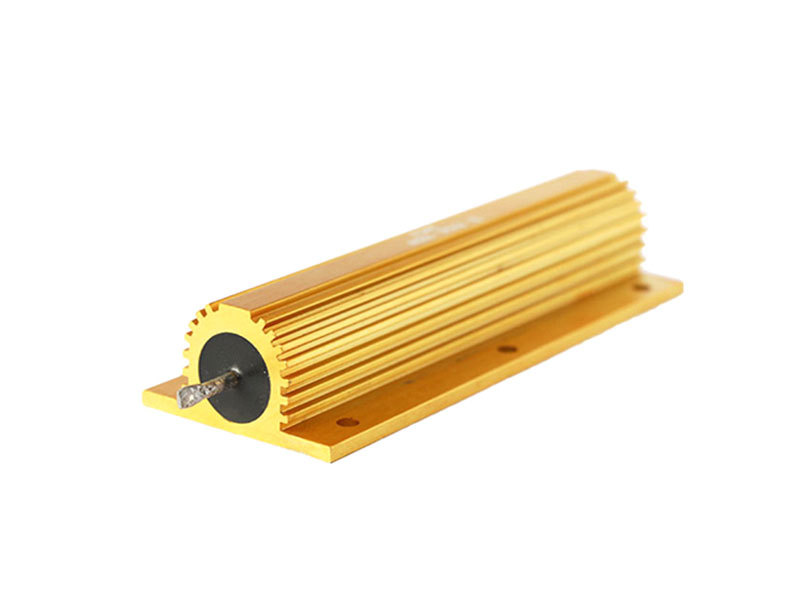

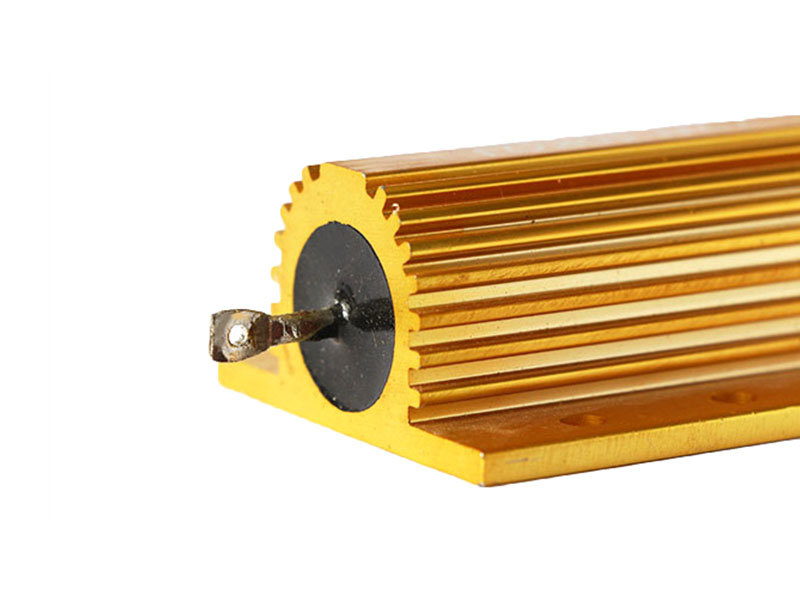

Technical Specification Type Rated Power Dimensions(mm) Weight(g) Resistor Body HeatSink A max B L max H max C L L1 M N ∅1 ∅2 Surface Area(cm²) Thickness(mm) RX24 5 15.5 16 36.5 8 8.5 11.4 12 4.4 1.5 1.5 2.2 415 1 3 10(15) 19.5 21 40.5 10 11.2 14 16 5 2 2 2.5 415 6 20(15/25) 27 27 48 13 14.3 18.3 20 7 2 2 3.5 535 11 30(25) 34 29 55 15.5 16.3 25 22 7.3 2 2 3.5 535 18 50 50 30 72 15.5 16.3 0 20.5 7.3 2 2 3.5 995 30 RXG24 75/100 65.5 48 93.5 2... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Technical Specification Type Rated Power Dimensions(mm) Weight(g) Resistor Body HeatSink A max B L max H max C L L1 M N ∅1 ∅2 Surface Area(cm²) Thickness(mm) RX24 5 15.5 16 36.5 8 8.5 11.4 12 4.4 1.5 1.5 2.2 415 1 3 10(15) 19.5 21 40.5 10 11.2 14 16 5 2 2 2.5 415 6 20(15/25) 27 27 48 13 14.3 18.3 20 7 2 2 3.5 535 11 30(25) 34 29 55 15.5 16.3 25 22 7.3 2 2 3.5 535 18 50 50 30 72 15.5 16.3 0 20.5 7.3 2 2 3.5 995 30 RXG24 75/100 65.5 48 93.5 26 27 23.5 37 1... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Technical Specification Type Rated Power Dimensions(mm) Weight(g) Resistor Body HeatSink A max B L max H max C L L1 M N ∅1 ∅2 Surface Area(cm²) Thickness(mm) RX24 5 15.5 16 36.5 8 8.5 11.4 12 4.4 1.5 1.5 2.2 415 1 3 10(15) 19.5 21 40.5 10 11.2 14 16 5 2 2 2.5 415 6 20(15/25) 27 27 48 13 14.3 18.3 20 7 2 2 3.5 535 11 30(25) 34 29 55 15.5 16.3 25 22 7.3 2 2 3.5 535 18 50 50 30 72 15.5 16.3 0 20.5 7.3 2 2 3.5 995 30 RXG24 75/100 65.5 48 93.5 26 27 23.5 37 11.5 3.5 M3 4.4... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Technical Specification Type Rated Power Dimensions(mm) Weight(g) Resistor Body HeatSink A max B L max H max C L L1 M N ∅1 ∅2 Surface Area(cm²) Thickness(mm) RX24 5 15.5 16 36.5 8 8.5 11.4 12 4.4 1.5 1.5 2.2 415 1 3 10(15) 19.5 21 40.5 10 11.2 14 16 5 2 2 2.5 415 6 20(15/25) 27 27 48 13 14.3 18.3 20 7 2 2 3.5 535 11 30(25) 34 29 55 15.5 16.3 25 22 7.3 2 2 3.5 535 18 50 50 30 72 15.5 16.3 0 20.5 7.3 2 2 3.5 995 30 RXG24 75/100 65.5 48 93.5 26 27 23.5 37 11.5 3.5... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Resistor Type Power(W) Resistance Range(Ω) Dimension(mm) A B C D RX27-6 2 1-50 10 15 6 9 3 1-50 13 15 6 9 5 1-100 18 15 6 9 FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Resistor Type Power(W) Resistance Range(Ω) Dimension(mm) L l B1/H1 B2 B3 B4 H2 H3 RX27-3-3 3 0.2-390 24 12.5 9 5 1.4 1.6 10 23.5 RX27-3-5 5 0.24-680 27 15 9.5 5 1.4 1.6 10 24 RX27-3-7 7 0.33-1500 35 22.5 9.5 5 1.4 1.6 10 24 RX27-3-10 10 0.51-2000 48 35 9.5 5 1.4 1.6 10 24 RX27-3-15 15 1-2400 48 32.5 12.5 10 2.7 3 15 34.6 RX27-3-20 20 1-3000 63 50 12.5 10 2.7 3 15 34.6 FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Technical Specification Type Power(W) Resistance Range(Ω) Resistance Tolerance(%) Demensions(mm) Temperature Coefficient(×10^-6 /℃) Dmax Lmax D RX21 0.5 0.1~150 ±0.5 ±1 ±2 ±5 ±10 3.5 10 0.6 25±3 ±100 4 0.1~600 3.5 12 0.8 2~3 0.1~1.5K 5 13.5 0.8 4 0.1~5.1K 7.5 23.5 0.8 6 0.1~2K 7.5 23.5 0.8 8 0.1~36K 8.5 32.5 1 10 0.1~3.3K 8.5 32.5 1 12 0.1~3.6K 8.5 47 1 FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM

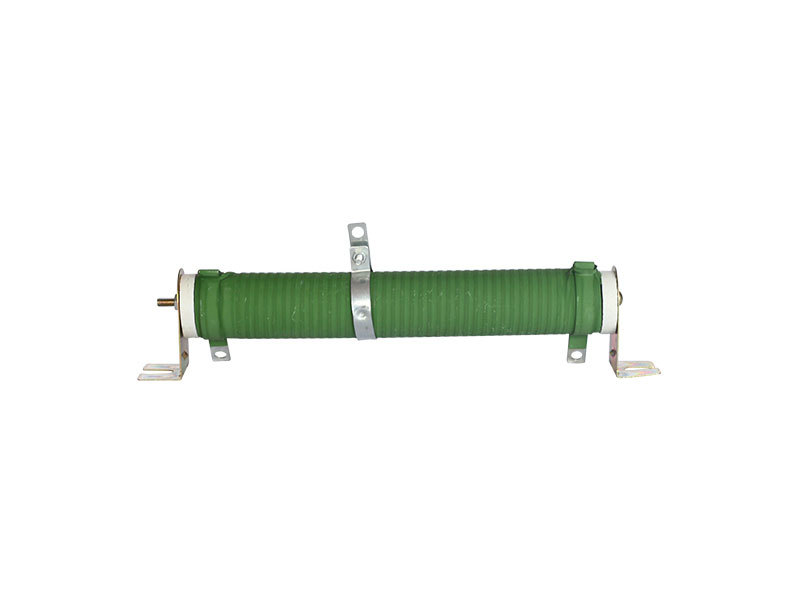

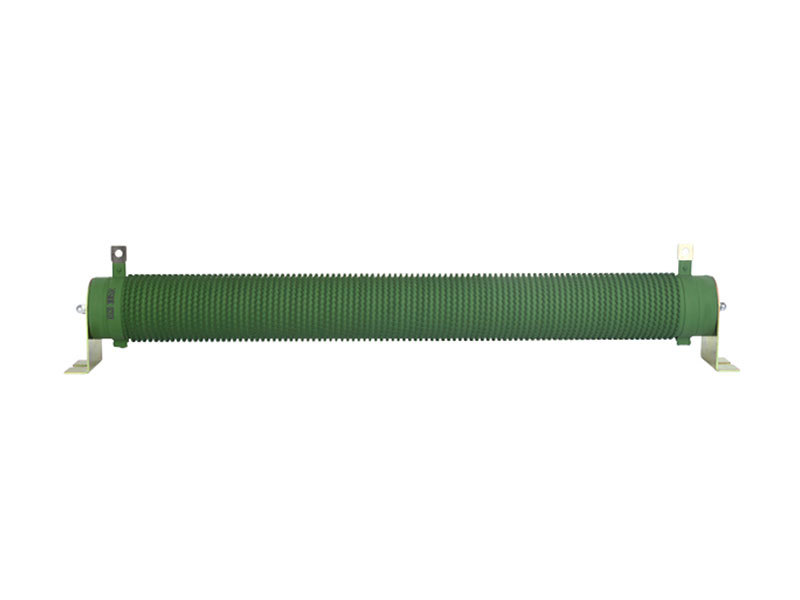

RXG coating type wire-wound resistor is a kind of power type resistor. The product use the wavelike resistance alloy strip to winding on the ceramic body. The surface is covered with heat-resistant insulating coating. To improve heat dissipation efficiency. And it is equlpped with mounting bracket. It has large power, large overload capacity, convenient to install and other feature. Rated Power(W) Dimension(mm) L ±2 L1 ±5 L2 ±3 ... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Resistor Type Power(W) Resistance Range(Ω) Dimension(mm) A/B C ∅ h RX27-1-2 RX27-2-2 2 0.15-200 6.4±1 17.5±1.2 0.8 1.5 RX27-1-3 RX27-2-3 3 0.2-390 8±1 22±1.5 0.8 1.5 RX27-1-5 RX27-2-5 5 0.24-680 9.5±1 22±1.5 0.8 1.5 RX27-1-7 RX27-2-7 7 0.33-1500 9.5±1 35±1.5 0.8 3 RX27-1-10 RX27-2-10 10 0.51-2000 9.5±1 48±1.5 0.8 3 RX27-1-15 15 1-2400 12.5±1.2 48±1.5 1 RX27-1-20 20 1-3000 12.5±1.2 63.5±2 1 FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM

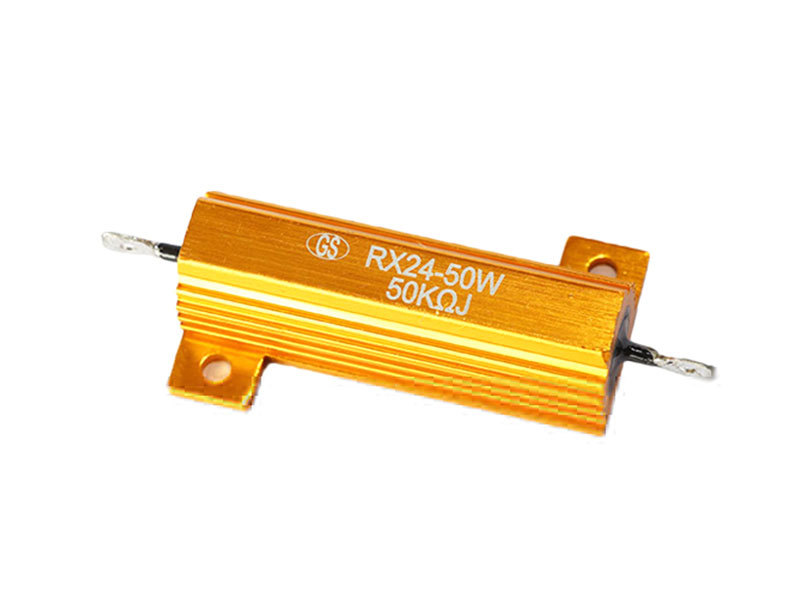

RX24-50W Braking Resistor/RX24 resistor/50w 6ohm resistor
RX24-10W Braking Resistor/50w 6r resistor
RX24-20W Braking Resistor/silver color high power resistor
RX24-25W Braking Resistor/golden color resistor
RX24-75W Braking Resistor/RX24 resistor

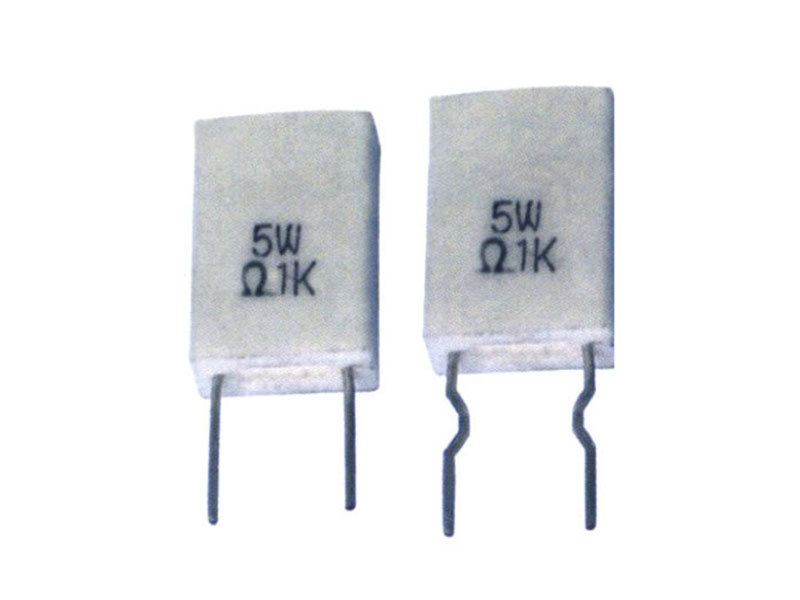

RX27-6 Resistor/ceramic resistor
RX27-3 Resistor/cement resistor
RX21 Fixed Resistors/wire wound power resistor/RX21 resistor
RX20-50W Resistor/adjustable resistor/RX20 resistor
RX20-25W Resistor/dummy load resistor/RX20 resistor
