Rotary Potentiometer RV28P1 Electrical Characteristics Total Resistance 100Ω-2MΩ Total Resistance Tolerance ±20% Max. Operation Voltage 500VAC Rated Power 1~1.5W Slider Noise ≤47mV Terminal Resistance ≥20Ω Max Mechanical Characteristics Total Rotational Angle 260°±10° Rotational Torque 2-20mN.m Rotational Life 10,000 cycles Shaft Material Metal or Plastic Temperature Range -10℃-85℃ FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM

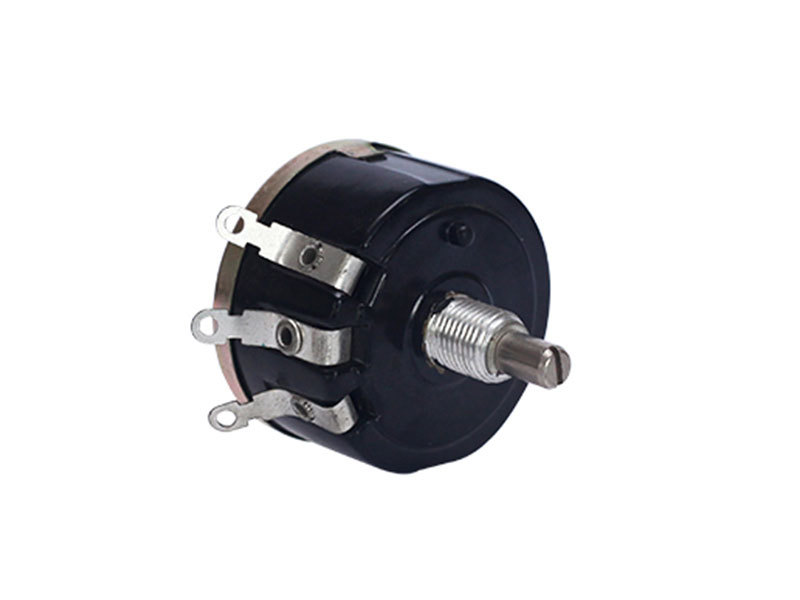

Single-turn wirewound potentiometer WX110 Range of nominal resistance 27Ω~10KΩ Resistance tolerance ±5% ±10% Operating voltage 100V Rated power 1W ( 55 °C ) Total mechanical travel 300° ± 10° Starting torque 3.5-100mN.m Single-turn wirewound potentiometer WX112 Range of nominal resistance 27Ω~47KΩ Resistance tolerance ±5% ±10% Operating voltage 320V Rated power 5W ( 55 °C ) Total mechanical travel 300° ± 10° Starting torque 3.5-100mN.m FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Total Rotational Angle 250°±5° Rotational Torque 0.3~2N.cm Stop Strength 40.cm Total Resistance 1K ohm ~ 2.2M ohm Resistance Tolerance ±20% Resistance Taper A B C Taper Rated Power 0.1W Max. Operating Voltage 150V AC Operating Temperature 60℃ Insulation Resistance ≥100M ohm at DC 500V Rotational Noise ≤47mV Rotational Life 10,000 cycles FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Carbon Film Potentiometer RM065 Electrical Characteristics Total Resistance 100Ω-1MΩ Total Resistance Tolerance ±10% ±20% Max. Operation Voltage AC50V Max Rated Power 0.1W Resistance Taper B (Linear) Insulation Resistance ≥100MΩ at 100V ac Residual Resistance ≤30 ohm Rotational Life Max. ±15% change in resistance after 100 unload circles Load life Max. ±5% change in resistance after 3 hours loaded Mechanical Characteristics Total Rotational Angle 270°±20° Rot... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Carbon Film Potentiometer WTH118-A Electrical Characteristics Total Resistance 470Ω-2.2MΩ Total Resistance Tolerance ±20% Max. Operation Voltage 250VAC Rated Power 2W Slider Noise ≤47mV Insulation Resistance ≥100MΩ at DC 500V Mechanical Characteristics Total Rotational Angle 260°±10° Rotational Torque 0.3~2N.cm Rotational Life 10,000 cycles Mechanical Travel 260°±10° Temperature Range -10℃-85℃ FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
Carbon Potentiometer RV09 Electrical Characteristics Total Resistance 5KΩ-500KΩ Total Resistance Tolerance ±20% Max. Operation Voltage 50V AC/20V DC Rated Power 0.05W Slider Noise ≥100mV Insulation Resistance ≥100MΩ Residual Resistance ≤20 ohm Max Mechanical Characteristics Total Rotational Angle 280°±5° Rotational Torque 10-80gf.cm Rotational Life 10,000 cycles Stop strength 3kgf.cm FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
RV28P Carbon Type Potentiometer/RV28P potentiometer
WX110-WX112 Carbon Type Potentiometer/WX110 potentiometer/WX111 potentiometer/WX112 potentiometer
B503 Radio Potentiometer/w503 potentiometer
B104 Rotary Potentiometer/w104 potentiometer
WH5 Rotational Potentiometer
W-01 Carbon Composition Potentiometer
RM065 Rotary Switch Potentiometer
R-03 Rotary Pot
G-05 Rotary Potentiometer Arduino
Dial potentiometer
