wth118 potentiometer
Category： WTH118
Product Detail

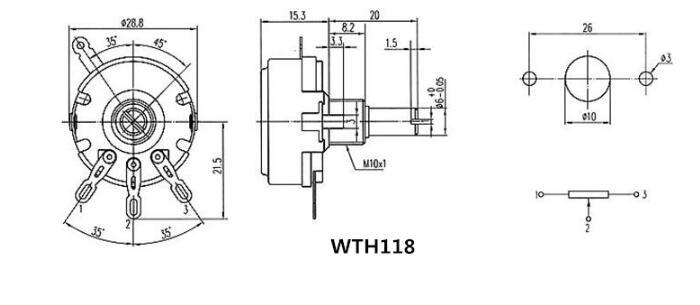

| Carbon Film Potentiometer WTH118 | ||
| Electrical Characteristics | Total Resistance | 470Ω-2.2MΩ |
| Total Resistance Tolerance | ±20% | |
| Max. Operation Voltage | 250VAC | |
| Rated Power | 2W | |
| Slider Noise | ≤47mV | |
| Insulation Resistance | ≥100MΩ at DC 500V | |
| Mechanical Characteristics | Total Rotational Angle | 260°±10° |
| Rotational Torque | 0.3~2N.cm | |
| Rotational Life | 10,000 cycles | |
| Mechanical Travel | 260°±10° | |
| Temperature Range | -10℃-85℃ | |
Keyword：wth118 potentiometer
Prev： WTH118-A Potentiometer
Next： Nothing！
wth118 potentiometer
Carbon Film Potentiometer WTH118 Electrical Characteristics Total Resistance 470Ω-2.2MΩ Total Resistance Tolerance ±20% Max. Operation Voltage 250VAC Rated Power 2W Slider Noise ≤47mV Insulation Resistance ≥100MΩ at DC 500V Mechanical Characteristics Total Rotational Angle 260°±10° Rotational Torque 0.3~2N.cm Rotational Life 10,000 cycles Mechanical Travel 260°±10° Temperature Range -10℃-85℃ FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
