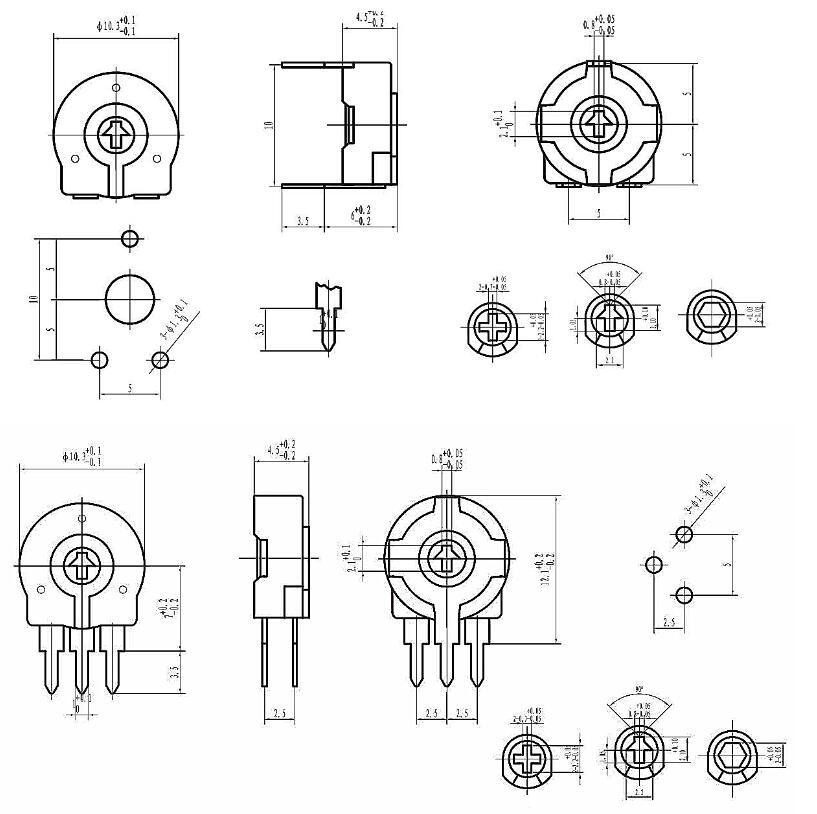

PT10 Rotary Potentiometer
Category： PT10
Product Detail
| Potentiometer PT10 | ||
| Electronic Characteristics | Resistance Range | 100ohm~2.2Mohm |
| Resistance Taper | B (linear) | |
| Total Resistance Tolerance | R<1MΩ ±20% R≥1MΩ ±30% | |
| Rated Power | 0.15W(50℃) | |
| Residual Resistance | 20Ω Max | |
| Rotation of Noise | ≤47mV | |
| Electrical Rotation Angle | 220°±20° | |
| Max Operating Voltage | 200V DC | |
| Mechanical Characteristics | Total Rotation Angle | 235°±5° |
| Rotation Torque | 40-200gf.cm | |
| Stop Torque | 5kgf.cm | |
| Push Pull Strength | ≥10N | |
Keyword：PT10 Rotary Potentiometer
Prev： Nothing！
Next： Nothing！
PT10 Rotary Potentiometer
Potentiometer PT10 Electronic Characteristics Resistance Range 100ohm~2.2Mohm Resistance Taper B (linear) Total Resistance Tolerance R<1MΩ ±20% R≥1MΩ ±30% Rated Power 0.15W(50℃) Residual Resistance 20Ω Max Rotation of Noise ≤47mV Electrical Rotation Angle 220°±20° Max Operating Voltage 200V DC Mechanical Characteristics Total Rotation Angle 235°±5° Rotation Torque 40-200gf.cm Stop Torque 5kgf.cm Push Pull Strength ≥10N &n... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
