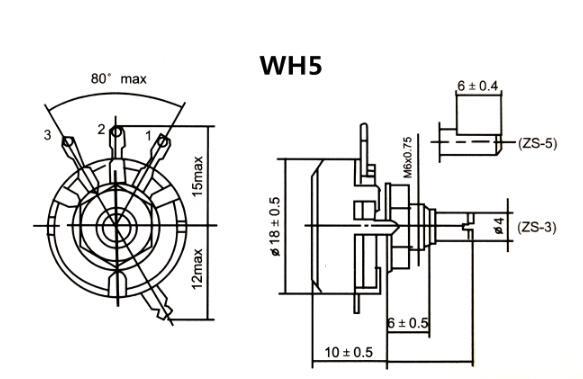

WH5 Rotational Potentiometer
Category： WH5
Product Detail
| Total Rotational Angle | 250°±5° |
| Rotational Torque | 0.3~2N.cm |
| Stop Strength | 40.cm |
| Total Resistance | 1K ohm ~ 2.2M ohm |
| Resistance Tolerance | ±20% |
| Resistance Taper | A B C Taper |
| Rated Power | 0.1W |
| Max. Operating Voltage | 150V AC |
| Operating Temperature | 60℃ |
| Insulation Resistance | ≥100M ohm at DC 500V |
| Rotational Noise | ≤47mV |
| Rotational Life | 10,000 cycles |
Keyword：WH5 Rotational Potentiometer
Prev： Nothing！
Next： Nothing！
WH5 Rotational Potentiometer
Total Rotational Angle 250°±5° Rotational Torque 0.3~2N.cm Stop Strength 40.cm Total Resistance 1K ohm ~ 2.2M ohm Resistance Tolerance ±20% Resistance Taper A B C Taper Rated Power 0.1W Max. Operating Voltage 150V AC Operating Temperature 60℃ Insulation Resistance ≥100M ohm at DC 500V Rotational Noise ≤47mV Rotational Life 10,000 cycles FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
