RX24-25W Braking Resistor/golden color resistor
Category： RX24
Product Detail

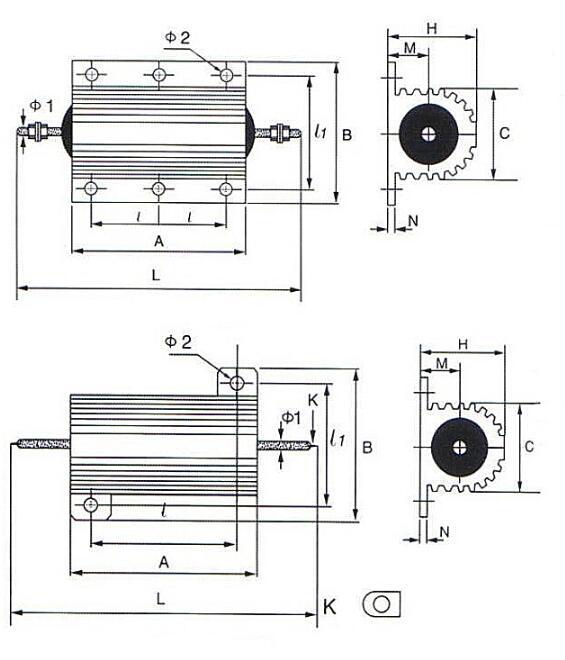

| Technical Specification | |||||||||||||||
| Type | Rated Power | Dimensions(mm) | Weight(g) | ||||||||||||
| Resistor Body | HeatSink | ||||||||||||||
| A max | B | L max | H max | C | L | L1 | M | N | ∅1 | ∅2 | Surface Area(cm²) | Thickness(mm) | |||
| RX24 | 5 | 15.5 | 16 | 36.5 | 8 | 8.5 | 11.4 | 12 | 4.4 | 1.5 | 1.5 | 2.2 | 415 | 1 | 3 |
| 10(15) | 19.5 | 21 | 40.5 | 10 | 11.2 | 14 | 16 | 5 | 2 | 2 | 2.5 | 415 | 6 | ||
| 20(15/25) | 27 | 27 | 48 | 13 | 14.3 | 18.3 | 20 | 7 | 2 | 2 | 3.5 | 535 | 11 | ||
| 30(25) | 34 | 29 | 55 | 15.5 | 16.3 | 25 | 22 | 7.3 | 2 | 2 | 3.5 | 535 | 18 | ||
| 50 | 50 | 30 | 72 | 15.5 | 16.3 | 0 | 20.5 | 7.3 | 2 | 2 | 3.5 | 995 | 30 | ||
| RXG24 | 75/100 | 65.5 | 48 | 93.5 | 26 | 27 | 23.5 | 37 | 11.5 | 3.5 | M3 | 4.4 | 995 | 3 | 90 |
| 100/150 | 98 | 48 | 126 | 26 | 27 | 35 | 37 | 11.5 | 3.5 | M3 | 4.4 | 995 | 160 | ||
| 150 | 130 | 48 | 158 | 26 | 27 | 52 | 37 | 11.5 | 3.5 | M3 | 4.4 | 995 | 240 | ||
| 200 | 92 | 73 | 132 | 45 | 46.5 | 35 | 58 | 21 | 5 | M6 | 5.5 | 3750 | 420 | ||
| 250 | 112 | 73 | 152 | 45 | 46.5 | 45 | 58 | 21 | 5 | M6 | 5.5 | 4765 | 480 | ||
| 300 | 130 | 73 | 170 | 45 | 46.5 | 51 | 58 | 21 | 5 | M6 | 5.5 | 5780 | 580 | ||
| 500 | 204 | 73 | 244 | 45 | 46.5 | 87 | 58 | 21 | 5 | M6 | 5.5 | 5800 | 970 | ||
| Main Characteristics | ||||||
| Type | Rated Power | Resistance Range(Ω) | Tolerance(%) | T.C.R.(×10^-6 /℃) | Voltage(V) | |
| With Shell | Without Shell | |||||
| RX24 | 5 | 3 | 0.01~1K | ±1 ±5 | ±100 ±50 | 1000 |
| 10(15) | 8 | 0.01~1.5K | ||||
| 20(15/25) | 12.5 | 0.01~20K | ||||
| 30(25) | 15 | 0.01~27K | ||||
| 50 | 20 | 0.01~33K | ||||
| RXG24 | 75 | 45 | 0.01~39K | 2000 | ||
| 100 | 50 | 0.01~51K | ||||
| 150 | 55 | 0.01~56K | ||||
| 200 | 50 | 0.01~62K | ||||
| 250 | 60 | 0.01~68K | ||||
| 300 | 75 | 0.01~75K | ||||
| 500 | 200 | 0.01~82K | ||||
Keyword：RX24-25W Braking Resistor/golden color resistor
Prev： RX24-20W Braking Resistor/silver color high power resistor
RX24-25W Braking Resistor/golden color resistor
