RX21 Fixed Resistors/wire wound power resistor/RX21 resistor
Category： RX21
Product Detail
| Technical Specification | ||||||||

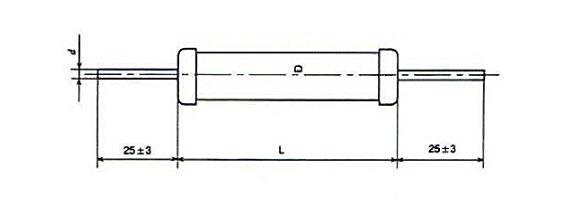

| Type | Power(W) | Resistance Range(Ω) | Resistance Tolerance(%) | Demensions(mm) | Temperature Coefficient(×10^-6 /℃) | |||
| Dmax | Lmax | D | ||||||
| RX21 | 0.5 | 0.1~150 | ±0.5 ±1 ±2 ±5 ±10 | 3.5 | 10 | 0.6 | 25±3 | ±100 |
| 4 | 0.1~600 | 3.5 | 12 | 0.8 | ||||
| 2~3 | 0.1~1.5K | 5 | 13.5 | 0.8 | ||||
| 4 | 0.1~5.1K | 7.5 | 23.5 | 0.8 | ||||
| 6 | 0.1~2K | 7.5 | 23.5 | 0.8 | ||||
| 8 | 0.1~36K | 8.5 | 32.5 | 1 | ||||
| 10 | 0.1~3.3K | 8.5 | 32.5 | 1 | ||||
| 12 | 0.1~3.6K | 8.5 | 47 | 1 | ||||
Keyword：RX21 Fixed Resistors/wire wound power resistor/RX21 resistor
Prev： Nothing！
Next： Nothing！
RX21 Fixed Resistors/wire wound power resistor/RX21 resistor
Technical Specification Type Power(W) Resistance Range(Ω) Resistance Tolerance(%) Demensions(mm) Temperature Coefficient(×10^-6 /℃) Dmax Lmax D RX21 0.5 0.1~150 ±0.5 ±1 ±2 ±5 ±10 3.5 10 0.6 25±3 ±100 4 0.1~600 3.5 12 0.8 2~3 0.1~1.5K 5 13.5 0.8 4 0.1~5.1K 7.5 23.5 0.8 6 0.1~2K 7.5 23.5 0.8 8 0.1~36K 8.5 32.5 1 10 0.1~3.3K 8.5 32.5 1 12 0.1~3.6K 8.5 47 1 FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM
